Description
What Is Included
Ground Clamp Set
ALP1980449
Ground Clamp Set , 250 A, 10ft, Cable Size AWG 4 (20 mm) , Cable Plug 35-70
Electrode Holder Set
ALP2280095
Electrode holder Set , 250 A, 10ft , Cable Size AWG 4 (21.2 mm), Cable Plug 35-70
Canaweld Bag
TGJ2780145
Adapter Plug 230-120V
CGA9980060
Features
- Excellent arc characteristics with all types of rods up to 5/32”.
- Low power consumption.
- Ability to work outdoors with adequate power generator.
- Fan cooled and thermally protected against overloading.
- Light weight, Carrying belt for easy transportation.
- Ability to use up to 165 feet (50 meters) leads without any power loss at the weld.
- Two available welding processes Stick and TIG (Lift).
- Tested in (104°F /40°C), designed for the toughest conditions.
- Large size Dinse style welding connectors.
- Metal faced panel.
- Comprehensive 3 Year Warranty.
Technical Sheet
| Process | Stick Electrode | TIG (no HF) | Stick Electrode | TIG (no HF) |
|---|---|---|---|---|
| Input Voltage, Single Phase, 50/60 Hz | 208 to 240 V (±10%) | 105 to 120 V (±10%) | ||
| Primary Current@Max Welding Current | 22 A | 14.8 A | 24 A | 15 A |
| Maximum Primary Effective Current (I1 eff max) | 15 A | 9.5 A | 20 A | 15 A |
| Welding Current Range | 10 – 160 A | 10 – 160 A | 10 – 90 A | 10 – 90 A |
| Duty Cycle @ Maximum Welding Current in 104o F (40o C) | 30% (160 A) | 30% (160 A) | 60% (90A) | 100% (90A) |
| Welding Current @ 100% Duty Cycle in 104o F (40o C) | 115 A | 115 A | 80 A | 90 A |
| Open Circuit Voltage : Volt | 95 V,7 V (VRD) | 7 V (VRD) | 95 V,7 V (VRD) | 7 V (VRD) |
| Output Voltage Range : Volt | 20.4 – 26.4 V | 10.4 – 16.4 V | 20.4 – 23.6 V | 10.4 – 13.6 V |
| Weight : lb. (Kg) | 18 lb. (8.5 Kg) | |||
| Dimensions Including Handle (D, W, H) : inch (mm) | 15.7 x 5.7 x 12.2 inch (400 x 145 x 310 mm) | |||
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories

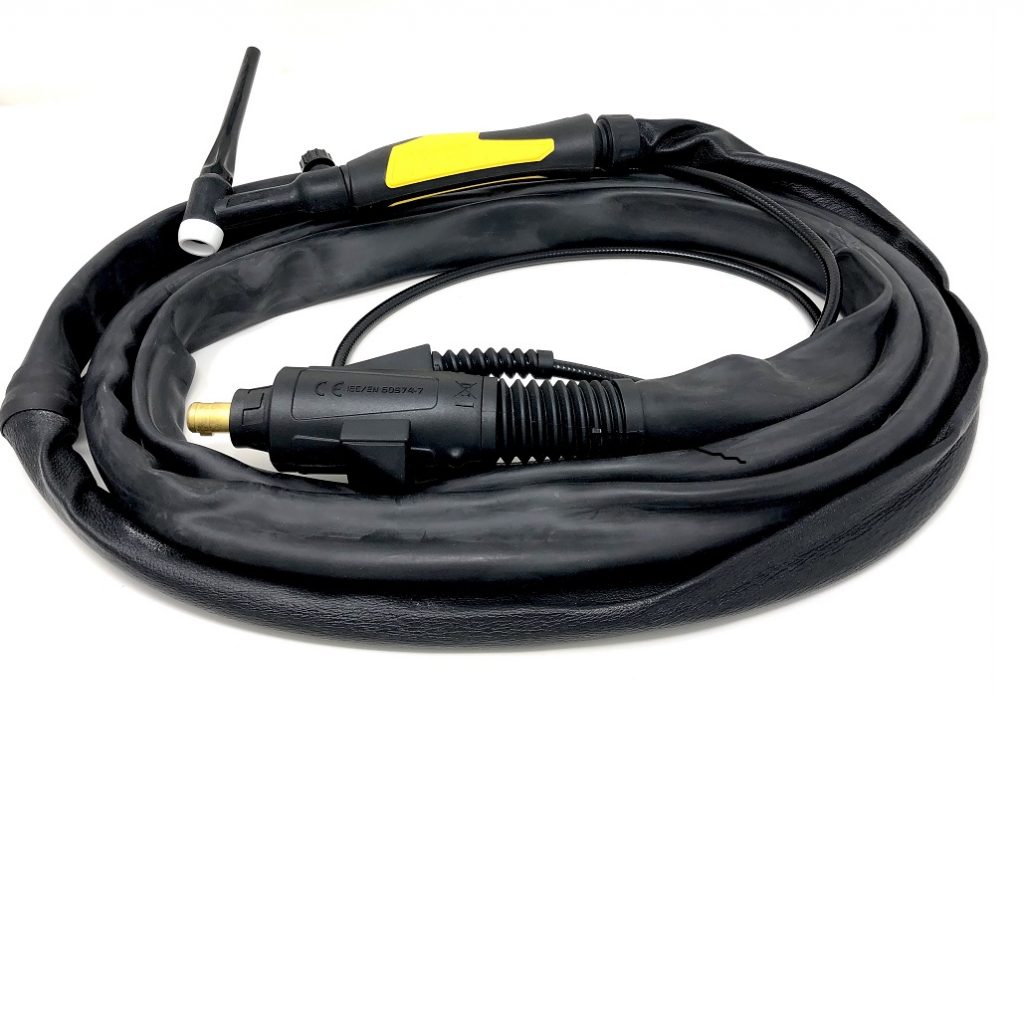

TIG Torch 200 AMP Gas Valve Air Cooled (26 SERIES)
CWSG26VFX-SL-12-SL-GS4
Premium TIG Torch, Air cooled with gas valve 200 AMP, 12 ft, ergonomic handle (Flex Head)
MSRP Price : $183.87
Argon/CO2 Regulator
CW-RLV-150-60CF-AR
UL-Approved LV150 Series, Single Stage For CO2/Argon, Mix
MSRP Price : $61.75
Ground Clamp Set
ALP1980448
Ground Clamp Set , 250 A, 10ft, Cable Size AWG 4 (21.2 mm) , Cable Plug 35-70
MSRP Price : $75.92
Ground Clamp Set
ALP1980451
Ground Clamp Set , 250 A, 20ft, Cable Size AWG 4 (21.2 mm) , Cable Plug 35-70
MSRP Price : $101.92
Ground Clamp Set
ALP1980452
Ground Clamp Set, 250 A, 30ft, Cable Size AWG 4 (21.2 mm) , Cable Plug 35-70
MSRP Price : $113.75
Electrode Holder Set
ALP2280449
Electrode holder Set , 250 A, 20ft, Cable Size AWG 4 (21.2 mm), Cable Plug 35-70
MSRP Price : $75.92
Electrode Holder Set
ALP2280470
Electrode holder Set, 250 A, 30ft, Cable Size AWG 4 (21.2 mm), Cable Plug 35-70
MSRP Price : $101.92
Electrode Holder Set
ALP2280472
Electrode holder Set, 250 A, 50ft, Cable Size AWG 4 (21.2 mm), Cable Plug 35-70
MSRP Price : $113.75
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
MSRP Price : $20.99
Superior True-View Welding Helmet Series
CWPOWER-990T-BLK
Superior True-View Black
MSRP Price : $178.00
Classic Duty Welding Helmet Series
CWELITE-550S-BLK
Classic Duty Black
MSRP Price : $69.00
Premium All-Function Welding Helmet Series
CWPOWER-980S-BLK
Premium All-Function Black
MSRP Price : $119.00
Premium All-Function Welding Helmet Series
CWPOWER-980S-CO
Premium All-Function Coal Fire
MSRP Price : $119.00
Consumables
TIG Collect Body
CWU10N31
Collet body 1/16" (1.6 mm) for TIG 26 Series Torch
MSRP Price : $13.60
TIG Collect Body
CWU10N32
Collet body 3/32" (2.4 mm) for TIG 26 Series Torch
MSRP Price : $13.60
TIG Collect Body
CWU10N28
Collet body 1/8" (3.2 mm) for TIG 26 Series Torch
MSRP Price : $13.60
TIG Collet
CWU10N23
Collet 1/16" (1.6 mm)
MSRP Price : $8.60
TIG Collet
CWU10N24
Collet 3/32" (2.4 mm)
MSRP Price : $8.60
Area of Use / Weldable Metals
Area of Use
- Metal Building
- Railcar
- Boat/Yacht
- Light Fabrication
- Mechanical Contractors
- Installation
- Restoring
- Maintenance and repair-field operation
- Plumbing & HVAC
- Civil Construction
- Infrastructure & roofing
- Work/Service Trucks
- Farm and Ranch
- Home hobbyist
Weldable Metals
- Steel
- Stainless Steel
Peter Westby –
First Impression. I had been shopping for an entry level dual voltage welder for months. It seems that most of the entry level welders, including those from the big names in welding, are made in China. Many share reviews that the electrode holder and work clamp are flimsy and need replacement. In reading reviews I came across a reviewer who mentioned a Canaweld stick welder. Said it worked well and had high quality components. I checked it out. Found it is made in Canada. And it was inexpensive. I ordered the 161 DU stick welder, Canaweld’s entry level machine, and just unboxed it today. I am very impressed with the quality. The work clamp and electrode holder are high quality and are attached to 12′ leads of heavy duty wire. Everything that I can see appears to be very solid and much better than many other entry level stick welders that I looked at. The machine will do lift arc tig as well. I bought this machine to repair items around the house, to build metal projects and to learn to weld better. I have been struggling with a very cheap low power AC machine. I can’t wait to use this new welder!
Dan Lytle –
Purchased 161D welder in Sept.2020, through Amazon. Was looking a portable stick welder for personal use,that I could use with 120 v. I was looking for a welder made in Canada, an not off shore. This welder was exactly what I was looking for. The welder works great , it is of very good quality an sturdly built. The cables and clamps are what you would expect from a much more expensive machine. The storage case is great but the zipper not so great.All in all this welder works great .I would recommend it .
