Description
What Is Included
In “Silver” Package you will get:
Ground Clamp Set
ALP1980462
Ground Clamp Set 280-320 A including: 10 ft. Welding Cable AWG 1 (42.4 mm²), Cable Plug 35, Ground Clamp 400A
Electrode Holder Set
ALP1980463
Electrode holder Set 280-320 A including: 10 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MIG Gun M300 Series
CWGPGTW300-15E
MIG Torch, Tweco® style M300 TE, Euro termination, 15 Ft.
Gas Welding Hose
TLJ1080188
1/4″ Argon Inert Hose (10 ft)
Drive Rolls Set
CW210810
Set of 2 Feed Rolls 0.030-0.040 Inch Or 0.8-1.0 mm V Groove (Hard Wire)
Drive Rolls Set
CW210911
Set of 2 Feed Rolls 0.035-0.045 Inch Or 0.9-1.1 mm V Groove (Hard Wire)
Drive Rolls Set
CW240810
Set of 2 Pressure Rolls Flat 0.030-0.040 Inch Or 0.8-1.0 mm (Hard Wire)
Drive Rolls Set
CW240911
Set of 2 Pressure Rolls flat 0.035-0.045 Inch Or 0.9-1.1 mm (Hard Wire)
Drive Rolls Set
CW261012
Set of 4 Feed Rolls 0.040-0.045 Inch Or 1.0-1.2 mm U Groove (Aluminum)
MIG Adjustable Nozzle Insulator Tweco® Style
CWU34A
MIG Adjustable Nozzle Insulator, Tweco® style, 300 & 400 AMP
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
Spool Holder Adapter 12″ to 8″
CGA2890928
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
Upgrade to “Gold” and get additional :
CWSG26FX-S1-12-SL-GS4-9 PIN
CWSG26FX-S1-12-SL-GS4-9 PIN
NOT FOUND
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
TIG Tungsten Electrode MIX of 6
CTE500-RGB-116332
Upgrade to “Aluminum” and get additional :
MIG Spool Gun SM300 Series
CWGPG-PLSPTW300-24-P10-60TE
Spool Gun SM300 TE, TWECO® Style Head, Euro Style Termination
Drive Rolls for MIG Spool Gun
CWUGP7020W-08U
Drive Roll , U Groove for Aluminum 0.030″ (0.8 mm)
Drive Rolls for MIG Spool Gun
CWUGP7020W-09U
Drive Roll , U Groove for Aluminum 0.035″ (0.9 mm)
Drive Rolls for MIG Spool Gun
CWUGP7020W-08
Drive Roll , V Groove for Solid wire 0.030″ (0.8 mm)
Drive Rolls for MIG Spool Gun
CWUGP7020W-10U
Drive Roll, U Groove FOR Aluminum wire 0.040″ (1.0 mm)
Drive Rolls for MIG Spool Gun
CWUGP7020W-09
Drive Roll , V Groove for Solid wire 0.035″ (0.9 mm)
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-30
Contact tip 0.030″ (0.8 mm)
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-35
Contact tip 0.035″ (0.9 mm)
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-40
Contact tip 0.040″ (1.0 mm)
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-45
Contact tip 0.045″ (1.2 mm)
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-52
Tweco® Style contact tip, AL-0.052″ (1.3 mm)
CWU23-62
CWU23-62
NOT FOUND
Features
- A 5-inch LCD allows both experienced, and novice users to operate the device quickly and easily, ensures correct setting and parameter selection, reduces parameter setting time, and increases actual welding time
- Synergic control provides pre-set weld parameters, improves usability, and enables operators of all skill levels to perform their tasks correctly
- Possibility of welding processes MIG, Flux Cored, Gasless Wires, TIG lift, Stick Welding
- Tested in (104°F/40°C), designed for toughest conditions
- Digital control of the welding parameters based on the material or gas type and the wire diameter
- Manual polarity changeover feature for most common gas and gasless wires, Stick electrodes and Lift TIG process.
- Professional and heavy-duty wire feeding mechanism with 37mm rolls
- Sealed (Dust proof), powerful, heavy-duty, and durable wire feeder motor
- Replaceable Double groove rolls, no tools needed
- Spool Gun Compatible
- Adjustable Voltage, Wire Speed, Wave Form, Burn back (in MIG process)
- Possibility of Selection of the Material, Wire Diameter, Gas, 2T/4T (in MIG process)
- Adjustable Amperage, Final Slope, Post Flow, (In TIG process)
- Adjustable Amperage, Arc Force and Material Thickness Selection (In Stick welding process)
- Working possibility with Both 8 and 12-inch (203 and 305 mm) Wire Spool Size
- Equipped with flip doors and specific mechanism to assist the movement and ability to hold the doors in place at an angle for ease of access.
- Metal face panel
- Auto-switching fan
- Generator compatible.
- Equipped with Lockable Swivel Casters
- Comprehensive 3 Year Warranty
- The machine is equipped with two built in eyebolts for lifting.
Technical Sheet
| Process | Unit | MIG/Flux cored | TIG (Lift Arc) | Stick Electrode |
|---|---|---|---|---|
| Input Voltage, Single Phase, 50/60 Hz | V | 208 to 240 (±10%) | ||
| Primary Current@Max Welding Current | A | 63 | 48 | 54 |
| Maximum Primary Effective Current (I1 eff max) | A | 35.7 | 29 | 41 |
| Technology of Adjustment (Manual/Synergic) | Manual and Synergic | |||
| Welding Current Range | A | 30 – 300 | 5 – 300 | 5 – 250 |
| Duty Cycle @ Maximum Welding Current in 104°F (40°C) | 30% | 30% | 40% | |
| Welding Current @ 60% Duty Cycle in 104°F (40°C) | A | 250 | 250 | 250 |
| Welding Current @ 100% Duty Cycle in 104°F (40°C) | A | 200 | 200 | 180 |
| Open Circuit Voltage | V | 76.5 | ||
| Stick Parameters | ||||
| Stick Mode | DC | |||
| Arc Force | 0 – 10 | |||
| Hot Start | 0 – 10 | |||
| TIG Parameters | ||||
| TIG Ignition Type | Lift | |||
| TIG Process Modes | 2T/4T | |||
| Pre-flow | Sec. | 0.0 – 5.0 | ||
| Final Slope | Sec. | 0.0 – 10 | ||
| Post flow | Sec. | 0.0 – 25.0 | ||
| MIG Parameters | ||||
| Voltage Range | V | 10.0 – 30.0 | ||
| MIG Process Modes | 2T/4T | |||
| Pre-flow | Sec. | 0.0 – 2.0 | ||
| Post flow | Sec. | 0.0 – 10 | ||
| Burn back | 0 – 10 | |||
| Soft Start | 0 – 10 | |||
| Gas Types | Mixed, CO2, Argon | |||
| Wire Feeder speed | ipm (m/min) | 59 – 708 (1.5-18) | ||
| Wire Feeder Mechanism / Material | Four Rolls / Metal | |||
| Solid Wire Size Range | in. (mm) | 0.030 – 0.045 (0.8 – 1.2) | ||
| Stainless steel Wire Size Range | in. (mm) | 0.035 – 0.045 (0.9 – 1.2) | ||
| Flux-cored Wire Size Range | in. (mm) | 0.035 – 0.045 (0.9 – 1.2) | ||
| Aluminum Wire Size Range | in. (mm) | 0.040 – 0.045 (1.0 – 1.2) | ||
| CuSi Wire Size Range | in. (mm) | 0.040 (1.0) | ||
| Wire Spool Size | in. | 8 or 12 | ||
| (mm) | (203 or 305) | |||
| Weight | lb. (Kg) | 136 lb. (61.5 Kg) | ||
| Dimensions Including Handle (D, W, H) : inch (mm) | in. (mm) | 36.6 x 22.8 x 30.7 inch (930 x 580 x 780 mm) | ||
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories
MIG Spool Gun CST251
CWICL08131
Spool Gun CST 251, 9 Pin-10ft (3 Meter) , 0.030"-0.040"/(0.8-1.0 mm)
MSRP Price : $395.00 CAD
MIG Spool Gun CST251
CWICL08141
Spool Gun CST 251, 9 Pin-13ft (4 Meter) , 0.030"-0.040"/(0.8-1.0 mm)
MSRP Price : $445.00 CAD
MIG Spool Gun SMH360 Series
CWGPG-PGSP360A-24-P10-60BE
Spool Gun SMH360 BE, Binzel® Style Head, Euro® Style Termination
MSRP Price : $898.00 CAD
MIG Gun M300 Series
CWGPGTW300-15E
MIG Torch, Tweco® style M300 TE, Euro termination, 15 Ft.
MSRP Price : $280.00 CAD
Electrode Holder Set
ALP1980468
Electrode holder Set 280-320 A including: 20 ft. welding cable AWG1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $200.00 CAD
Electrode Holder Set
ALP1980469
Electrode holder Set 280-320 A including: 30 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $250.00 CAD
Electrode Holder Set
ALP1980470
Electrode holder Set 280-320 A including: 50 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $350.00 CAD
Ground Clamp Set
ALP1980459
Ground Clamp Set 280-320 A including: 20 ft. Welding Cable AWG 1 (42.4 mm²), Cable Plug 35, Ground Clamp 400A
MSRP Price : $200.00 CAD
Ground Clamp Set
ALP1980471
Ground Clamp Set 280-320 A including: 30 ft. Welding Cable AWG 1 (42.4 mm²), Cable Plug 35, Ground Clamp 400A
MSRP Price : $250.00 CAD
Ground Clamp Set
ALP1980472
Ground Clamp Set 280-320 A including: 50 ft. Welding Cable AWG 1 (42.4 mm²), Cable Plug 35, Ground Clamp 400A
MSRP Price : $350.00 CAD
TIG Torch Air Cooled
CWSG26FX-S1-12-SL-GS4-9Pin
Premium TIG Torch, Air cooled, 200 AMP, 9 Pin, 12 ft
MSRP Price : $273.10 CAD
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
MSRP Price : $29.98 CAD
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
MSRP Price : $28.00 CAD
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
MSRP Price : $129.00 CAD
Superior True-View Welding Helmet Series
CWPOWER-990T-BLK
Superior True-View Black
MSRP Price : $178.00 CAD
Classic Duty Welding Helmet Series
CWELITE-550S-BLK
Classic Duty Black
MSRP Price : $69.00 CAD
Premium All-Function Welding Helmet Series
CWPOWER-980S-BLK
Premium All-Function Black
MSRP Price : $119.00 CAD
Premium All-Function Welding Helmet Series
CWPOWER-980S-CO
Premium All-Function Coal Fire
MSRP Price : $119.00 CAD
Consumables
MIG Nozzle Tweco® Style
CWU22-62/P2
Nozzle Adjustable Push On 22-62, Tweco® style, 200 AMP Bore Size 16 mm, (Compatible with Insulator U32 & Diffuser U52 Only)
MSRP Price : $24.90 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-30/P10
Tweco® Style contact tip, 0.030" (0.8 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-35/P10
Tweco® Style contact tip, 0.035" (0.9 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-40/P10
Tweco® Style contact tip, 0.040" (1.0 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-45/P10
Tweco® Style contact tip, 0.045" (1.2 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14H-30/P10
Heavy Duty Tweco® Style contact tip, 0.030" (0.8 mm)
MSRP Price : $17.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14H-35/P10
Heavy Duty Tweco® Style contact tip, 0.035" (0.9 mm)
MSRP Price : $17.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14H-40/P10
Heavy Duty Tweco® Style contact tip, 0.040" (1.0 mm)
MSRP Price : $17.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14H-45/P10
Heavy Duty Tweco® Style contact tip, 0.045" (1.2 mm)
MSRP Price : $17.50 CAD

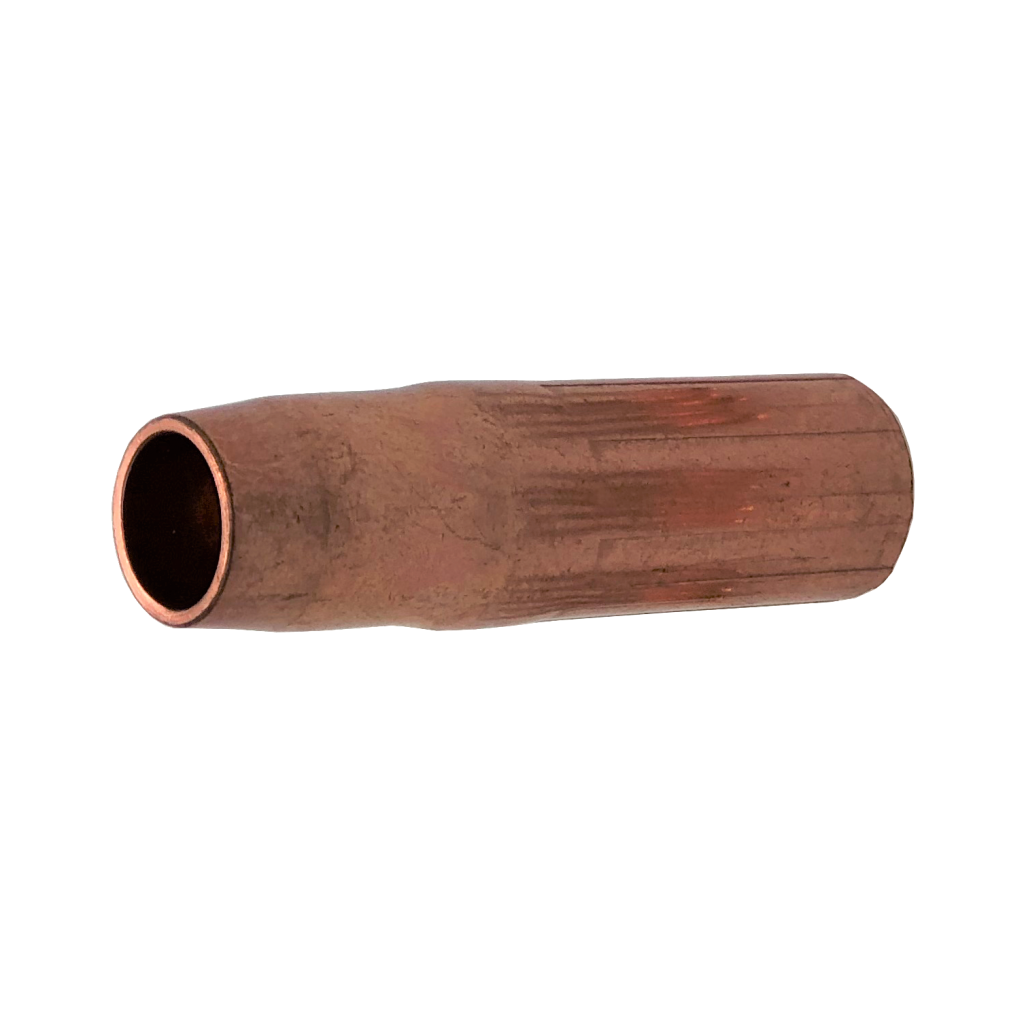

MIG Nozzle Tweco® Style
CWU23-62
MIG Gun Nozzle, Self Insulated, Screw On, Tweco® style 5/8" (16 mm)
MSRP Price : $24.90 CAD
MIG Diffuser Tweco® Style
CWU54A/P2
Diffuser, Tweco® style, 54 series , Tweco® 300 & 400 AMP
MSRP Price : $19.00 CAD
MIG Liner Tweco® Style
CWU42N-4045-15
Polyamide liner, Tweco® style, brass nipple , 15', 0.040-0.045"-1.0-1.2 mm fits Tweco® 200,300 & 400 AMP
MSRP Price : $20.99 CAD
MIG Liner Tweco® Style
CWUA44-3545-15
Steel liner, Tweco® style, brass nipple 15', 0.035-0.045"- 0.9-1.2 mm fits Tweco® 200 & 300 AMP
MSRP Price : $17.99 CAD
TIG Ceramics Cups
CWU10N46/P5
CERAMIC CUP #8, 1/2", 12.5 mm BORE
MSRP Price : $12.00 CAD
TIG Ceramics Cups
CWU10N48/P5
STANDARD CERAMIC CUP #6 3/8" 10 mm BORE
MSRP Price : $12.00 CAD
TIG Collect Body
CWU10N31/P5
Collet body 1/16" (1.6 mm) for TIG 26 Series Torch
MSRP Price : $14.00 CAD
TIG Collect Body
CWU10N32/P5
Collet body 3/32" (2.4 mm) for TIG 26 Series Torch
MSRP Price : $14.00 CAD
Drive Rolls Set
CW280911
Set of 4 Feed Rolls 0.035-0.045 Inch Or 0.9-1.1 mm Knurled Groove, For Flux Cored
MSRP Price : $188.00 CAD
Drive Rolls Set
CW260911
Set of 4 Feed Rolls 0.035-0.045 Inch Or 09-1.1 mm U Groove For Aluminum
MSRP Price : $188.00 CAD
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
MSRP Price : $29.98 CAD
Drive Rolls for MIG Spool Gun
CWUGP7020W-08U
Drive Roll , U Groove for Aluminum 0.030" (0.8 mm)
MSRP Price : $19.80 CAD
Drive Rolls for MIG Spool Gun
CWUGP7020W-09U
Drive Roll , U Groove for Aluminum 0.035" (0.9 mm)
MSRP Price : $19.80 CAD
Drive Rolls for MIG Spool Gun
CWUGP7020W-08
Drive Roll , V Groove for Solid wire 0.030" (0.8 mm)
MSRP Price : $19.80 CAD
Drive Rolls for MIG Spool Gun
CWUGP7020W-10U
Drive Roll, U Groove FOR Aluminum wire 0.040" (1.0 mm)
MSRP Price : $19.80 CAD
Drive Rolls for MIG Spool Gun
CWUGP7020W-09
Drive Roll , V Groove for Solid wire 0.035" (0.9 mm)
MSRP Price : $19.80 CAD
Area of Use / Weldable Metals
Area of Use
- Aerospace
- Aluminum Industries
- Automotive Parts and Bodies
- Passenger Car Industries
- Training school
- Metal Building
- Manufacturing
- Medical Industries
- Railcar
- Boat/Yacht
- Shipbuilding
- Light Fabrication
- Food Industries and High Purity Processing
- Mechanical Contractors
- Installation
- Restoring
- Maintenance and repair-field operation
- Plumbing & HVAC
- Civil Construction
- Infrastructure & roofing
- Work/Service Trucks
- Farm and Ranch
Weldable Metals
- Steel
- Stainless Steel
- Aluminium (with Spool Gun)
- Chrome Moly
- Titanium
- Copper
welder_morrison –
The quality is good. We use the machine everyday in our shop and so far no issue. I’m happy with this machine and would buy more welders from them.
Tony –
Easy to switch between different processes. Good size welder
Niaomi –
Impressive machine. With all features that the machine has and being made in Canada it has a very reasonable price. Good job Canaweld.
Greg –
I purchased Canaweld machine few weeks ago. Mig is perfect and the machine is great in total for different welding jobs.
