MULTIPROCESS 231 SLM

The Multiprocess 231 SLM is a high-tech, synergetic, powerful and portable inverter welder, equipped with an LCD Panel and a saving program facility. This unit is capable of Stick welding, MIG welding and TIG welding with a lift start in manual or synergic mode. The combination of synergic control and job programming ability makes this unit user-friendly for less experienced welders looking to perform high quality welds and save a lot of time and cost on machine setup. It features an LCD display which walks the user through setup one step at a time and then automatically adjusts its parameters to meet the required use. It’s like having your own personal welding expert right there with you! The voltage of this unit is selectable between 230 V (±15%) or 115 V (±15%) which makes it suitable for any single voltage electrical network. It is the perfect choice for anyone; from a novice to the professional production welder who has speed and quality in mind. The Multiprocess 231 SLM is capable of welding with Canaweld’s spool gun which ensures trouble-free Aluminum MIG welding too.

Available models :

MULTIPROCESS 231 SLM, Silver
MULTIPROCESS 231 SLM, Silver
Including MIG Gun
Part Number : PLC7580163
MSRP Price : C$2,598.00

Add to Cart

MULTIPROCESS 231 SLM, Gold
MULTIPROCESS 231 SLM, Gold
Including MIG Gun, TIG Torch, TIG Accessories and TIG Tungsten
Part Number : PLC7580164
MSRP Price : C$2,785.00

Add to Cart

MULTIPROCESS 231 SLM, Gold Plus
MULTIPROCESS 231 SLM, Gold Plus
Including MIG Gun, TIG Torch, TIG Accessories, TIG Tungsten and Swivel Caster Package
Part Number : PLC7580166
MSRP Price : C$2,988.00

Add to Cart

MULTIPROCESS 231 SLM, Aluminum Package
MULTIPROCESS 231 SLM, Aluminum Package
Including MIG Gun, Spool Gun and Spool Gun Accessories
Part Number : PLC7580165
MSRP Price : C$2,745.00

Add to Cart

Description

In Silver Package you will get:



Upgrade to “Gold” and get additional :



Upgrade to “Gold Plus” and get additional :



Upgrade to “Aluminum Package” and get additional :


  • Capabilities to save up to 9 programs.
  • LCD display for quick intuitive setup whether you are an expert or beginner
  • Synergic control of welding parameters by machine
  • Possibility of welding processes MIG, Flux Cored, Gasless Wires, TIG, Stick Welding
  • Tested in (104°F/40°C), designed for toughest conditions
  • Digital control of the welding parameters based on the material or gas type and the wire diameter
  • Built-in polarity changeover feature for most common gas and gasless wires and Lift TIG Arc start
  • Professional wire feeding mechanism with 30mm rolls
  • Sealed (Dust proof), powerful and durable motor of wire feeder
  • Replaceable Double groove rolls, no tools needed
  • ‘Energy Saving’ function to operate the power source cooling fan when necessary

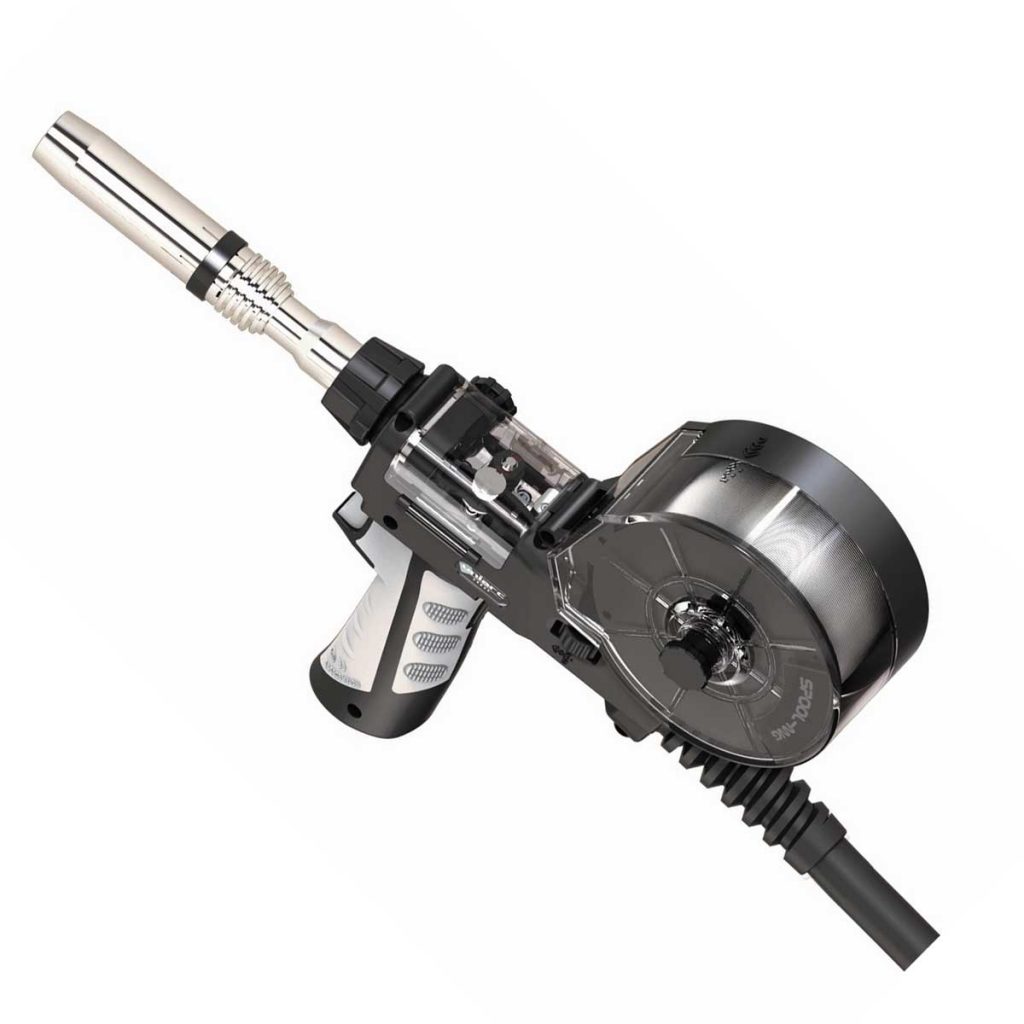

  • Spool Gun Compatible
  • Generator Adapted
  • Adjustable Voltage, Wire Speed, Wave Form, Burn back (in MIG process)
  • Possibility of Selection of Material, Wire Diameter, Gas, 2T/4T (in MIG process)
  • Adjustable Current, Down Slope, Post gas, (In TIG process)
  • Possibility of Selection of Material thickness, Tungsten Diameter, 2T/4T (In TIG Process)
  • Adjustable Current, Arc Force and Material Thickness selection (In Stick welding process)
  • Working possibility with Both 8 and 12-inch (203 and 305 mm) Wire Spool Size
  • Metal face panel
  • Comprehensive 3 Year Warranty

Process MIG/Flux cored TIG (Lift Arc) Stick Electrode MIG/Flux cored TIG (Lift Arc) Stick Electrode
Input Voltage, Single Phase, 50/60 Hz 208 to 240 V(±10%) 105 to 120 V(±10%)
Primary Current@Max Welding Current 28.5 19.5 29.8 31.5 23.8 27.5
Maximum Primary Effective Current (I1 eff max) 13 9.8 15.5 18 17.5 18
Technology of Adjustment (Manual/Synergic) Manual or Synergic
Welding Current Range 30 – 220 A 10 – 200 A 10 – 200 A 30 – 140 A 10 – 140 A 10 – 110 A
Duty Cycle @ Rated Current in 104° F (40° C) 20%@200A 20%@200A 20%@200A 25%@140A 40%@140A 30%@110A
Welding Current @ 100% Duty Cycle in 104° F (40° C) 120 A 120 A 120 A 90 A 110 A 75 A
Welding Current @ 60% Duty Cycle in 104° F (40° C) 130 A 130 A 130 A 100 A 130 A 85 A
Open Circuit Voltage : Volt 47 V 47 V
Solid Steel Wire Size Range : inch (mm) 0.023 – 0.040 in (0.6 – 1 mm) 0.023 – 0.040 in (0.6 – 1 mm)
Stainless steel Wire Size Range : inch (mm) 0.023 – 0.040 in (0.6 – 1 mm) 0.023 – 0.040 in (0.6 – 1 mm)
Flux-cored Wire Size Range : inch (mm) 0.030 – 0.045 in (0.8 – 1.2 mm) 0.030 – 0.045 in (0.8 – 1.2 mm)
Aluminum Wire Size Range : inch (mm) 0.030 – 0.045 in (0.8 – 1.2 mm) 0.030 – 0.045 in (0.8 – 1.2 mm)
Max Wire Feeder speed : ipm (m/min) 656 ipm (16.4 m/min) 400 ipm (10 m/min)
Wire Feeder Mechanism Material Metal
Wire Spool Size : inch (mm) 8 or 12 inch (203 or 305 mm)
Weight : lb. (Kg) 49 lb. (22.5 Kg)
Dimensions Including Handle (D, W, H) : inch (mm) 24.4 x 13.3 x 16.1 inch (620 x 340 x 410 mm)

CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE

Area of Use

  • Aerospace
  • Aluminum Industries
  • Automotive Parts and Bodies
  • Passenger Car Industries
  • Training school
  • Metal Building
  • Manufacturing
  • Medical Industries
  • Railcar
  • Boat/Yacht
  • Shipbuilding
  • Light Fabrication
  • Food Industries and High Purity Processing
  • Mechanical Contractors
  • Installation
  • Restoring
  • Maintenance and repair-field operation
  • Plumbing & HVAC
  • Civil Construction
  • Infrastructure & roofing
  • Work/Service Trucks
  • Farm and Ranch

Weldable Metals

  • Steel
  • Stainless Steel
  • Aluminium (with Spool Gun)
  • Chrome Moly
  • Titanium
  • Copper
