Description
What Is Included
Ground Clamp Set
ALP1980440
Ground Clamp Set 215A including: 10 ft. Welding Cable AWG 4 (21.2 mm²), Cable Plug 35, Ground Clamp 400A
Electrode Holder Set
ALP2280095
Electrode holder Set 215 A including: 10 ft. welding cable AWG 4 (21.2 mm), Cable Plug 35, Electrode Holder EH301
MIG Gun M250 Series
CWGPGTW250-10E
MIG Torch, Tweco® style M250 TE, Euro termination, 10 Ft.
Argon/CO2 Regulator
CW-RLV-150-60CF-AR
UL-Approved LV150 Series, Single Stage For CO2/Argon, Mix
Gas Welding Hose
TLJ1080188
1/4″ Argon Inert Hose (10 ft)
Drive Roll For Single Phase Machines
TGL0480458
Drive Roll For Single Phase Machines 0.030-0.035 Inch Or 0.8-0.9 mm V Groove ( Hard Wire)
Drive Roll For Single Phase Machines
TGL0480462
Drive Roll For Single Phase Machines 0.030-0.040 Inch Or 0.8-1.0 mm V Groove ( Hard Wire)
Drive Roll For Single Phase Machines
TGL0480464
Drive Roll For Single Phase Machines 0.030-0.035 Inch Or 0.8-0.9 mm K (Knurled)
MIG Gun Tweco® Style Consumable Kits
ALPMIGCON
MIG TORCH Tweco® Style 200A Consumable Standard Set
Upgrade to “Aluminum Package” and get additional :
Features
- Wide range of welding amperage up to 220A
- High power output, 170A @ 100% Duty Cycle & 200A @ 35% Duty Cycle.
- Designed for extreme environments and tested in (104°F/40°C).
- Inverter power supply with excellent MIG and Stick welding qualities.
- Automatic compensation for main power fluctuations within ± 20%.
- Capability to use of up to 165 feet (50 meters) of lead without power loss at the weld.
- High-quality metal double drive roll system for accurate and consistent wire feed, preventing bird nesting.
- Welds steel and aluminum up to 3/8″ thick.
- The most acquire settings by using the graduated knob.
- Automatic regulation of the wire speed by using the motor voltage feedback to provide an exceptionally steady arc with a minimum splatter.
- Overheat prevention by using a fan and thermal protection.
- Built-in polarity changeover feature for most common gas and gasless wires.
- Metal face panel.
- Spool gun compatible.
- Both 8 and 12-inch (203 and 305 mm) Wire Spool Size.
- Comprehensive 3 Year Warranty.
Technical Sheet
| Process | MIG/ Flux cored | Stick Electrode |
|---|---|---|
| Input Voltage, Single Phase, 50/60 Hz | 208 to 240 V(±10%) | |
| Primary Current@Rated Maximum Welding Current | 37 A @ 240 V | 38 A @ 240 V |
| Maximum Primary Effective Current(I1 eff max) | 27 A @ 240 V | 29 A @ 240 V |
| Technology of Adjustment(Maual / Synergic) | Manual | |
| Welding Current Range | 30-220 A | 10-200 A |
| Duty Cycle @ Rated Maximum Welding Current in 104o F (40° C) | 35%(200 A) | 35%(200 A) |
| Welding Current @ 100% Duty Cycle in 104° F(40° C) | 170 A | 160 A |
| Welding Current @ 60% Duty Cycle in 104° F(40° C) | 190 A | 180 A |
| Open Circuit Voltage : Volt | 52 V | |
| Output Voltage Range : Volt | 15.5-24 V | 20.4-28 V |
| Solid Steel Wire Size Range : inch(mm) | 0.023-0.040 in(0.6-1 mm) | |
| Stainless steel Wire Size Range : inch(mm) | 0.023-0.040 in(0.6-1 mm) | |
| Flux-cored Wire Size Range : inch(mm) | 0.030-0.045 in(0.8-1.2 mm) | |
| Aluminum Wire Size Range : inch(mm) | 0.030-0.045 in(0.8-1.2 mm) | |
| Max Wire Feeder speed : ipm(m/min) | 630 ipm(16 m / min) | |
| Wire Feeder Mechanism Material | Metal | |
| Wire Spool Size : inch(mm) | 8 and 12 inch(203 and 305 mm) | |
| Weight : lb(Kg) | 42 lb(19 Kg) | |
| Dimensions Including Handle(D , W , H): inch(mm) | 23.8 x 11 x 15.15 inch(605 x 280 x 385 mm) | |
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories
MIG Spool Gun CST251
CWICL08131
Spool Gun CST 251, 9 Pin-10ft (3 Meter) , 0.030"-0.040"/(0.8-1.0 mm)
MSRP Price : $395.00 CAD
MIG Spool Gun CST251
CWICL08141
Spool Gun CST 251, 9 Pin-13ft (4 Meter) , 0.030"-0.040"/(0.8-1.0 mm)
MSRP Price : $445.00 CAD
MIG Spool Gun CST251
CWICL08161
Spool Gun CST 251, 9 Pin-20ft (6 Meter) , 0.030"-0.040"/(0.8-1.0 mm)
MSRP Price : $495.00 CAD
MIG Spool Gun SMH360 Series
CWGPG-PGSP360A-24-P10-60BE
Spool Gun SMH360 BE, Binzel® Style Head, Euro® Style Termination
MSRP Price : $898.00 CAD
Welding Cart (Single and Double Gas Bottle Variations)
TR4-D1-1
Welding Cart (Single Gas Bottle)
MSRP Price : $488.00 CAD
Welding Cart (Single and Double Gas Bottle Variations)
TR4-D1-2
Welding Cart (Double Gas Bottle)
MSRP Price : $588.00 CAD
ALP1980448
ALP1980448
NOT FOUND
MSRP Price :
Ground Clamp Set
ALP1980451
Ground Clamp Set 215A including: 30 ft. Welding Cable AWG 4 (21.2 mm²), Cable Plug 35, Ground Clamp 400A
MSRP Price : $141.00 CAD
Ground Clamp Set
ALP1980452
Ground Clamp Set 215A including: 50 ft. Welding Cable AWG 4 (21.2 mm²), Cable Plug 35, Ground Clamp 400A
MSRP Price : $156.00 CAD
Electrode Holder Set
ALP2280449
Electrode holder Set 215 A including: 20 ft. welding cable AWG 4 (21.2 mm), Cable Plug 35, Electrode Holder EH301
MSRP Price : $183.00 CAD
Electrode Holder Set
ALP2280470
Electrode holder Set 215 A including: 30 ft. welding cable AWG 4 (21.2 mm), Cable Plug 35, Electrode Holder EH301
MSRP Price : $215.00 CAD
Electrode Holder Set
ALP2280472
Electrode holder Set 215 A including: 50 ft. welding cable AWG 4 (21.2 mm), Cable Plug 35, Electrode Holder EH301
MSRP Price : $285.00 CAD
Superior True-View Welding Helmet Series
CWPOWER-990T-BLK
Superior True-View Black
MSRP Price : $178.00 CAD
Classic Duty Welding Helmet Series
CWELITE-550S-BLK
Classic Duty Black
MSRP Price : $69.00 CAD
Premium All-Function Welding Helmet Series
CWPOWER-980S-BLK
Premium All-Function Black
MSRP Price : $119.00 CAD
Premium All-Function Welding Helmet Series
CWPOWER-980S-CO
Premium All-Function Coal Fire
MSRP Price : $119.00 CAD
MIG Gun Tweco® Style Consumable Kits
ALPMIGCON
MIG TORCH Tweco® Style 200A Consumable Standard Set
MSRP Price : $29.98 CAD
Consumables
MIG Nozzle Tweco® Style
CWU22-62/P2
Nozzle Adjustable Push On 22-62, Tweco® style, 200 AMP Bore Size 16 mm, (Compatible with Insulator U32 & Diffuser U52 Only)
MSRP Price : $24.90 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-30/P10
Tweco® Style contact tip, 0.030" (0.8 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-35/P10
Tweco® Style contact tip, 0.035" (0.9 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14-40/P10
Tweco® Style contact tip, 0.040" (1.0 mm)
MSRP Price : $15.50 CAD
Tweco® Style Contact Tip (MIG/Spool Gun/Push-Pull)
CWU14A364/P10
Tweco® Style contact tip, AL-0.045" (1.2 mm)
MSRP Price : $17.50 CAD
MIG Diffuser Tweco® Style
CWU52FN/P2
Diffuser, Tweco® style, 52FN series, Tweco® 200 AMP
MSRP Price : $16.00 CAD
MIG Liner Tweco® Style
CWU42-4045-15
Steel liner, Tweco® style, molded nipple 15', 0.040-0.045"- 1.0-1.2 mm fits Tweco® 200 AMP
MSRP Price : $17.99 CAD
MIG Liner Tweco® Style
CWU42N-4045-15
Polyamide liner, Tweco® style, brass nipple , 15', 0.040-0.045"-1.0-1.2 mm fits Tweco® 200,300 & 400 AMP
MSRP Price : $20.99 CAD

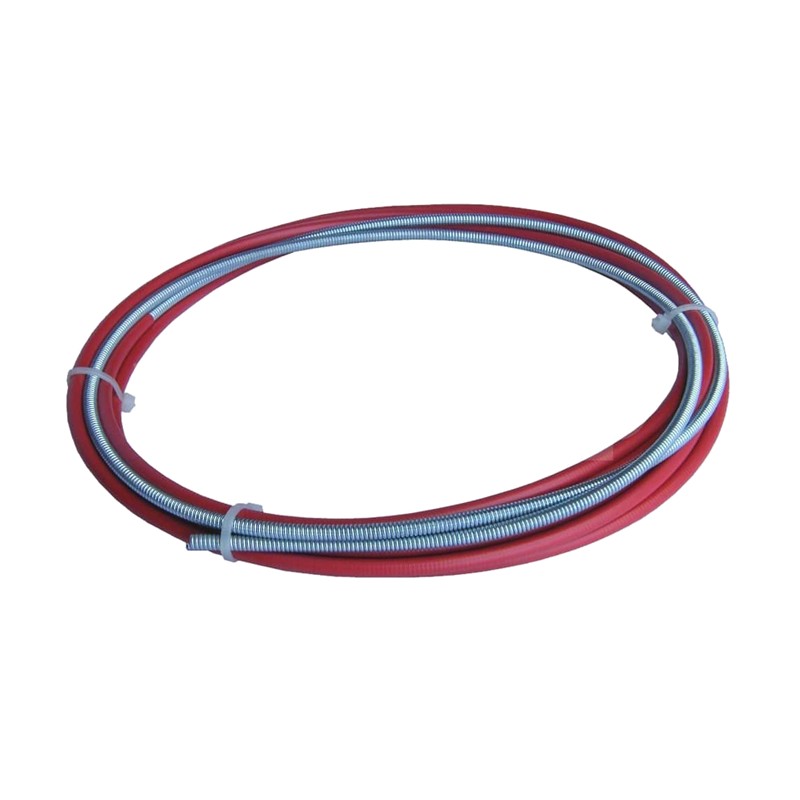

MIG Liner Tweco® Style
CWUA42-3035-15
Steel liner, Tweco® style, brass nipple 15', 0.030-0.035"- 0.8-0.9 mm fits Tweco® 200 AMP
MSRP Price : $17.99 CAD
MIG Liner Tweco® Style
CWUA42-4045-15
Steel liner, Tweco® style, brass nipple 15', 0.040-0.045"- 1.0-1.2 mm fits Tweco® 200 AMP
MSRP Price : $17.99 CAD
Drive Roll For Single Phase Machines
TGL0480463
Drive Roll For Single Phase Machines 0.023-0.030 Inch Or 0.6-0.8 mm V Groove ( Hard Wire)
MSRP Price : $28.00 CAD
Drive Roll For Single Phase Machines
TGL0480461
Drive Roll For Single Phase Machines 0.040-0.045 Inch Or 1.0-1.2 mm K (Knurled)
MSRP Price : $28.00 CAD
Drive Roll For Single Phase Machines
TGL2980341
Drive Roll For Single Phase Machines 0.030-0.035 Inch Or 0.8-0.9 mm U Groove( Aluminum)
MSRP Price : $28.00 CAD
Drive Roll For Single Phase Machines
TGL0480460
Drive Roll For Single Phase Machines 0.040-0.045 Inch Or 1.0-1.2 mm U Groove ( Aluminum)
MSRP Price : $28.00 CAD
MIG Gun Tweco® Style Consumable Kits
ALPMIGCON
MIG TORCH Tweco® Style 200A Consumable Standard Set
MSRP Price : $29.98 CAD
Area of Use / Weldable Metals
Area of Use
- Aerospace
- Automotive Parts and Bodies
- Passenger Car Industries
- Training school
- Metal Building
- Medical Industries
- Railcar
- Boat/Yacht
- Shipbuilding
- Light Fabrication
- Food Industries and High Purity Processing
- Mechanical Contractors
- Installation
- Restoring
- Maintenance and repair-field operation
- Plumbing & HVAC
- Civil Construction
- Infrastructure & roofing
- Work/Service Trucks
- Farm and Ranch
- Home hobbyist
Weldable Metals
- Steel
- Stainless Steel
- Aluminum (with optional spool gun)
- Chrome-moly
Derek –
I saw Canaweld machines in a professional welding shop so I decided to buy this MIG welder. Came with 600v cable, the MiG gun and 300amp electrode holder and the size of wire spool tells you this is a serious welder. THIS IS THE REAL DEAL
George –
Good machine. Arrived on time. Good customer service
Mana –
Silky smooth arcs. We run spools of 0.030” and 0.035” flux core through the machine and the weld consistency and quality surprised us.
