Description
What Is Included
Ground Clamp Set
ALP1980453
Ground Clamp Set ,500 A, 10ft, Cable Size AWG 1 (42.4 mm), Cable Plug 75-90
Electrode Holder Set
ALP2280098
Electrode holder Set , 500 A, 10ft, Cable Size AWG 1 (42.4 mm), Cable Plug 75-90
MIG Gun Panasonic® Style 500 AMP
CWGPGPN500A-40E-42
Panasonic® style 500 Amp, Euro termination, 4 meter, Cable 42 mm
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
Welder Cart CT 70
CW234914

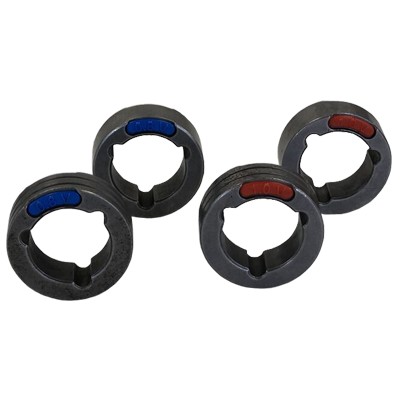

Drive Rolls Set for Three Phase Machines
SET0810V
4 Drive Rolls Set For Three Phase Machines 0.030-0.040 Inch Or 0.8-1.0 mm V Groove ( Hard Wire)
Drive Rolls Set for Three Phase Machines
SET0911V
4 Drive Rolls Set For Three Phase Machines 0.9-1.1 mm V Groove ( Hard Wire)
Drive Rolls Set for Three Phase Machines
SET0911U
4 Drive Rolls Set For Three Phase Machines 0.9-1.1 mm U Groove ( Aluminium)
MIG Gun Panasonic® Style Consumable Kits
ALPCON5001
MIG TORCH 500A Panasonic® Style Consumable Standard Set
Features
- Software equipped for the arc control to achieve a more perfect and stable arc.
- Very precise and faster operation of power source control.
- Perfect detachment of the droplet, mostly in MIG PULSED and DUAL PULSED.
- Consequent reduction in distortions, an improvement in the puddle and considerable increase in welding speed.
- Possibility to be integrated into automated welding equipment.
- Ability to connect to any Robot by means of a Robot Interface which can handle several analogic, fieldbus digital protocols depending on the features of the Robot to be used.
- Optional “Vision Pipe software platform” which enables to weld for more accurate welding in pipe first root pass.
- Optional “Vision Cold software platform” which enables to weld for low heat transfer MIG/MAG welding.
- Optional “Vision Ultra Speed software platform” to weld small and medium thickness at a far higher speed.
- Optional “Vision Power software platform” to obtain deeper penetration on medium and large thickness material.
- Optional “Vision Pulse-Up platform” dedicated to vertical up welding.
- Optional “Vision Pulse-Power platform” for a greater penetration together with an increase in welding speed.
- Optional “Vision Pulse-Run platform” for a faster pulse welding.
Technical Sheet
| Process | MIG | Stick Electrode | TIG |
|---|---|---|---|
| Input Voltage Range ( Three Phase, 50/60 Hz) | 400 V±20% | ||
| Primary Current@Max Welding Current | 36.5 A | 38 | 30 |
| Maximum Primary Effective Current ( I1 eff max ) | 27.5 A | 29 | 21 |
| Welding Current Range | 10 – 400 A | 20 – 400 A | 20 – 400 A |
| Duty Cycle @ Maximum Welding Current in 104° F (40° C) | 50% (400 A) | 50% (400 A) | 50% (400 A) |
| Welding Current @ 100% Duty Cycle in 104° F (40° C) | 330 A @ 100% | 330 A @ 100% | 330 A @ 100% |
| Welding Current @ 60% Duty Cycle in 104° F (40° C) | 370 A @ 60% | 370 A @ 60% | 370 A @ 60% |
| Open Circuit Voltage : Volt | 70 V DC | 70 V DC | 70 V DC |
| Output Voltage Range | 14.5 – 34 V | 20.8 – 36 V | 10.8 – 26 V |
| Weight : lb ( Kg ) | 86 lb ( 39 Kg ) | ||
| Dimensions Including Handle ( D , W , H ) : inch ( mm ) | 26 x 11.4 x 20.27 inch(660 x 290 x 515 mm) | ||
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories
Electrode Holder Set
ALP2280100
Electrode holder Set , 500 A, 20ft, Cable Size AWG 1 (42.4 mm), Cable Plug 75-90
MSRP Price : $145.00
Electrode Holder Set
ALP2280097
Electrode holder Set , 500 A, 10ft, Cable Size AWG 2/0 (67.4 mm), Cable Plug 75-90
MSRP Price : $135.00
Electrode Holder Set
ALP2280101
Electrode holder Set , 500 A, 20ft, Cable Size AWG 2/0 (67.4 mm), Cable Plug 75-90
MSRP Price : $145.00
Ground Clamp Set
ALP1980455
Ground Clamp Set , 500 A, 20ft, Cable Size AWG 1 (42.4 mm), Cable Plug 75-90
MSRP Price : $55.00

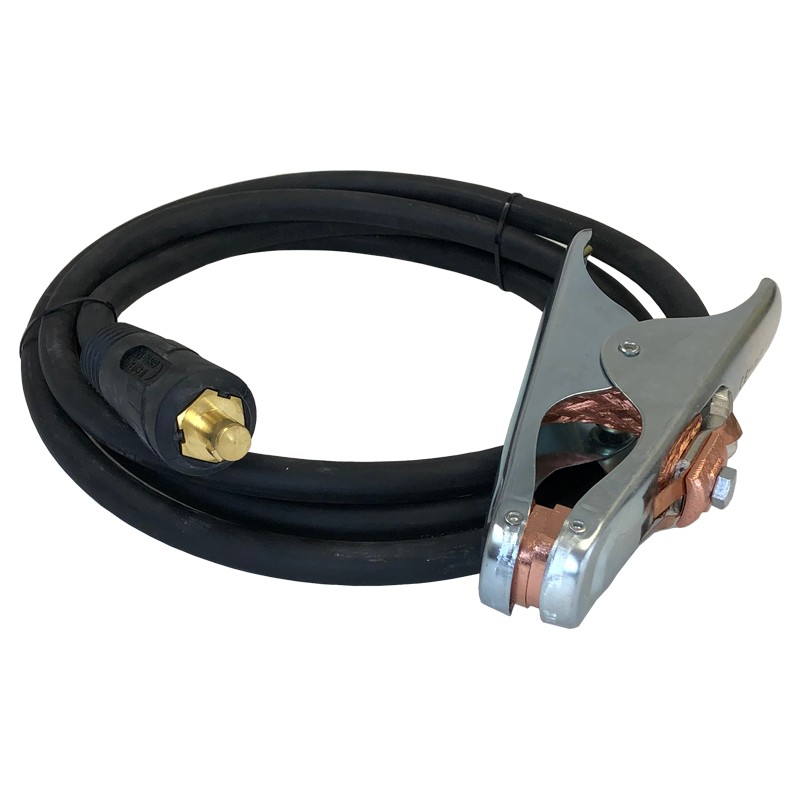

Ground Clamp Set
ALP2280503
Ground Clamp Set , 500 A, 10ft, Cable Size AWG 2/0 (67.4 mm), Cable Plug 75-90
MSRP Price : $125.00
Ground Clamp Set
ALP2280504
Ground Clamp Set , 500 A, 20ft, Cable Size AWG 2/0 (67.4 mm), Cable Plug 75-90
MSRP Price : $145.00
TIG Torch 200 AMP Gas Valve Air Cooled (26 SERIES)
CWSG26VFX-SL-12-SL-GS4
Premium TIG Torch, Air cooled with gas valve 200 AMP, 12 ft, ergonomic handle (Flex Head)
MSRP Price : $183.87
Superior True-View Welding Helmet Series
CWPOWER-990T-BLK
Superior True-View Black
MSRP Price : $178.00
Classic Duty Welding Helmet Series
CWELITE-550S-BLK
Classic Duty Black
MSRP Price : $69.00
Premium All-Function Welding Helmet Series
CWPOWER-980S-BLK
Premium All-Function Black
MSRP Price : $119.00
Premium All-Function Welding Helmet Series
CWPOWER-980S-CO
Premium All-Function Coal Fire
MSRP Price : $119.00
Consumables
MIG Nozzle Panasonic® Style
CWUPA5029
Nozzle adjustable, copper, 3/4" fits panasonic® Style 500 AMP
MSRP Price : $10.92

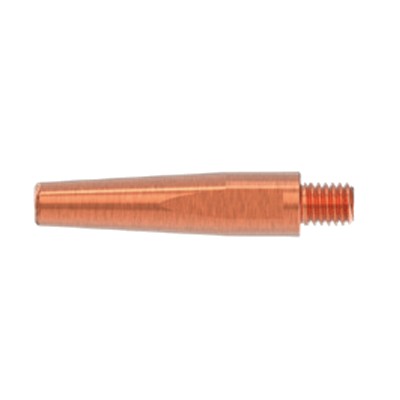

MIG Contact Tip Panasonic® Style
CWUJ45/0.8
Contact tip, 0.030 inch (0.8 mm) fits Panasonic® Style 500 AMP
MSRP Price : $15.50
MIG Contact Tip Panasonic® Style
CWUJ45/0.9
Contact tip, 0.035 inch (0.9 mm) fits Panasonic® Style 500 AMP
MSRP Price : $15.50
MIG Contact Tip Panasonic® Style
CWUJ45/1.0
Contact tip, 0.040 inch (1.0 mm) fits Panasonic® Style 500 AMP
MSRP Price : $15.50
MIG Contact Tip Panasonic® Style
CWUJ45/1.2
Contact tip, 0.045 inch (1.2 mm) fits Panasonic® Style 500 AMP
MSRP Price : $16.30
MIG Contact Tip Panasonic® Style
CWUJ45/1.6
Contact tip, 0.045 inch (1.6 mm) fits Panasonic® Style 500 AMP
MSRP Price : $16.30
MIG Liner Panasonic® Style
CWUPA3535-40
MIG Torch, Panasonic® style, steel liner, 4 meter 1.0-1.4 mm fits 350 & 500 AMP
MSRP Price : $17.99
MIG Liner Panasonic® Style
CWUPA5035-40
MIG Torch, Panasonic® style, steel liner, 4 meter , 1.2-1.6 mm fits 500 AMP
MSRP Price :
MIG Liner Panasonic® Style
CWUPA2035E-40
MIG Torch, Panasonic® style, steel liner, brass nipple, 4 meter 0.8-1.2 mm fits 200 AMP
MSRP Price :
MIG Diffuser Panasonic® Style
CWU5003
Ceramic Diffuser, fits Panasonic® Style 500 AMP
MSRP Price : $8.11
TIG Collect Body
CWU10N31
Collet body 1/16" (1.6 mm) for TIG 26 Series Torch
MSRP Price : $13.60
TIG Collect Body
CWU10N32
Collet body 3/32" (2.4 mm) for TIG 26 Series Torch
MSRP Price : $13.60
TIG Collect Body
CWU10N28
Collet body 1/8" (3.2 mm) for TIG 26 Series Torch
MSRP Price : $13.60

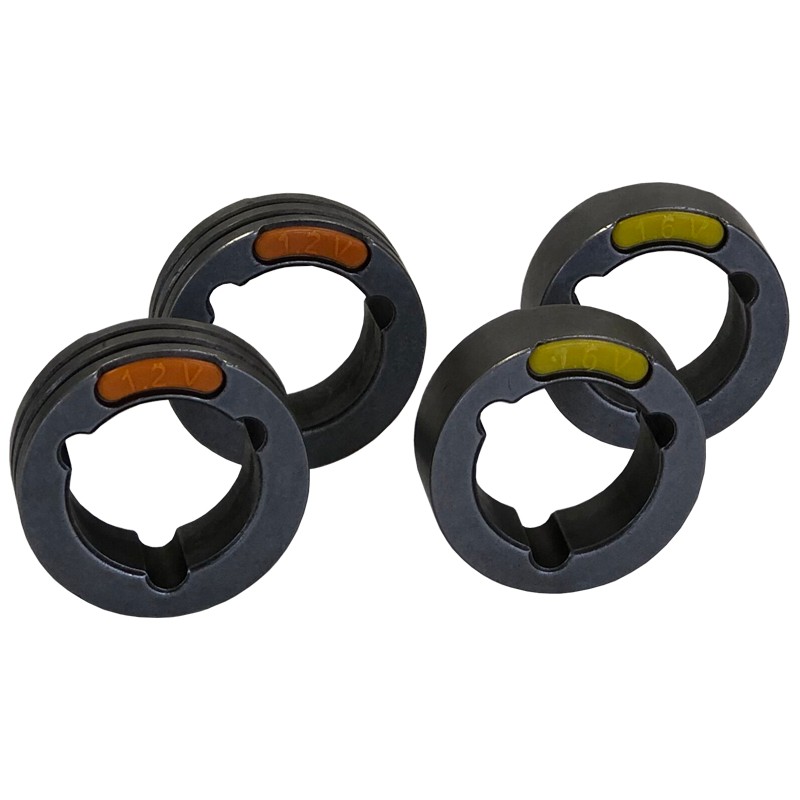

Drive Rolls Set for Three Phase Machines
SET1216V
4 Drive Rolls Set For Three Phase Machines 0.045-0.06 Inch Or 1.2-1.6 mm V Groove ( Hard Wire)
MSRP Price : $143.96
Drive Rolls Set for Three Phase Machines
SET0911K
4 Drive Rolls Set For Three Phase Machines 0.9-1.1 mm K ( Knurld)
MSRP Price : $143.96
Drive Rolls Set for Three Phase Machines
SET1216K
4 Drive Rolls Set For Three Phase Machines 0.045-0.06 Inch Or 1.2-1.6 mm K ( Knurld)
MSRP Price : $143.96
Drive Rolls Set for Three Phase Machines
SET1216U
4 Drive Rolls Set For Three Phase Machines 0.045-0.06 Inch Or 1.2-1.6 mm U Groove ( Aluminium)
MSRP Price : $143.96
MIG Gun Panasonic® Style Consumable Kits
ALPCON5001
MIG TORCH 500A Panasonic® Style Consumable Standard Set
MSRP Price : $18.99
Area of Use / Weldable Metals
Area of Use
- Maintenance
- Repair
- Auto Body
- Hobby
- Construction
- Muffer shops
- Fabrication
- Motorsports
- Factory Maintenance
- Welding School
Weldable Metals
- Steel
- Stainless Steel
- Aluminum
- Chrome-moly
